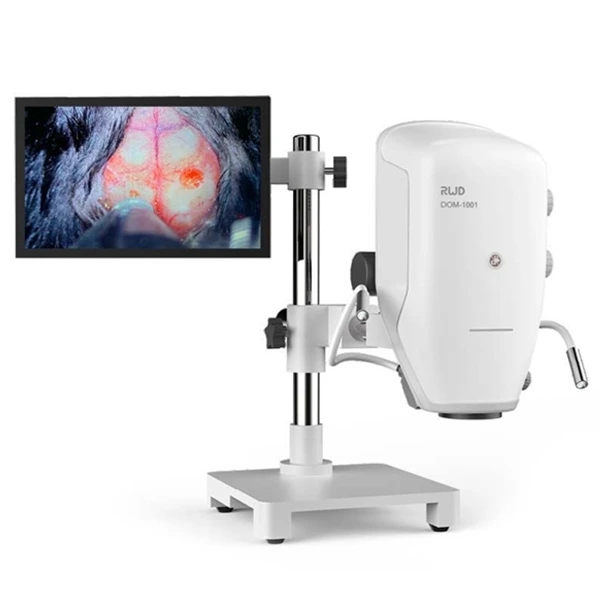

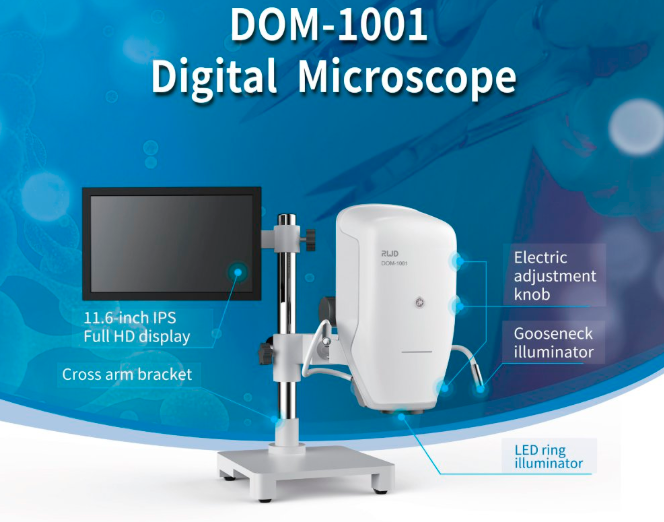

DOM-1001 Digital Microscope

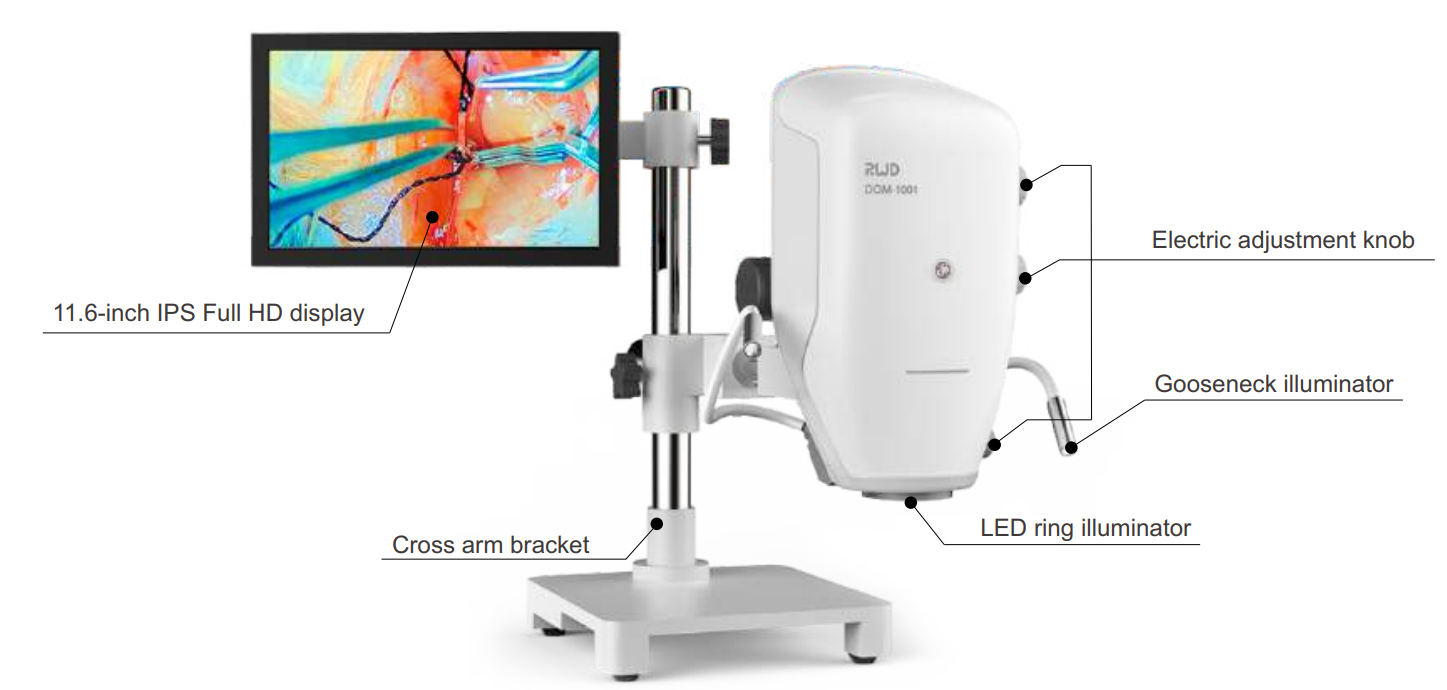

DOM-1001 is a digital microscope without eyepiece, with dual light sources and a cross arm bracket. High-end optical components and 16 million pixel CMOS camera can be used to capture real-time images and video, realizing multi-person sharing. Mainly used in life science, university teaching, industrial manufacturing, material science and other fields.


Product image Hover image


Technical Specifications

  • 16MP CMOS camera：The camera comes with fast automatic one-key exposure, supports exposure compensation, and can quickly shoot samples that contain areas of sharp bright and dark contrast.

  • Auto/manual one-button white balance and RGB adjustable enables real colors.

  • FHD resolution real-time images: The 60fps CMOS camera provides recording 4K pictures and 1080p videos.

  • The 7:1 zoom ratio (with switchable locking aperture) able to realize rapid magnification.

  • Ergonomic design : Foot pedal to adjust focal length, 180 mm working distance.
Parameter itemTechnical Item Description
Resolution1920×1080pixel
Sensor gradePanasonic 1600W 1/2.33″CMOS
Pixel size1.335μmX1.335μm
Sensor size6.18mmx4.65mm
magnification18-100x (27-inch monitor)
Zoom Ratio7:1
Working distance180mm
The depth of field6.7 mm（Highest magnification）, 0.41 mm（Lowest magnification）
ModelType nameNumberNotes
DOM-1001Digital MicroscopeNStandard configuration includes 11.6-inch display
S2721HSDell Full HD Monitor-27 inchesNMatching (recommended)

Get in touch for more information
