Pathological Section Solutions, rotary microtome

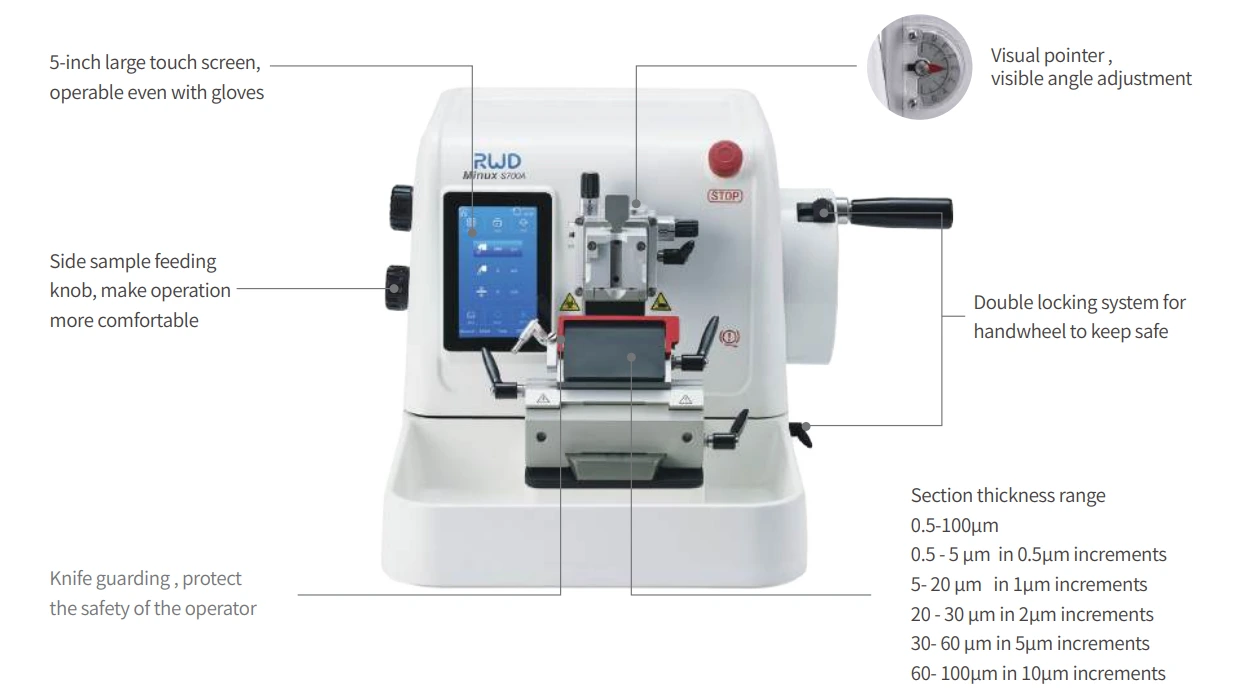

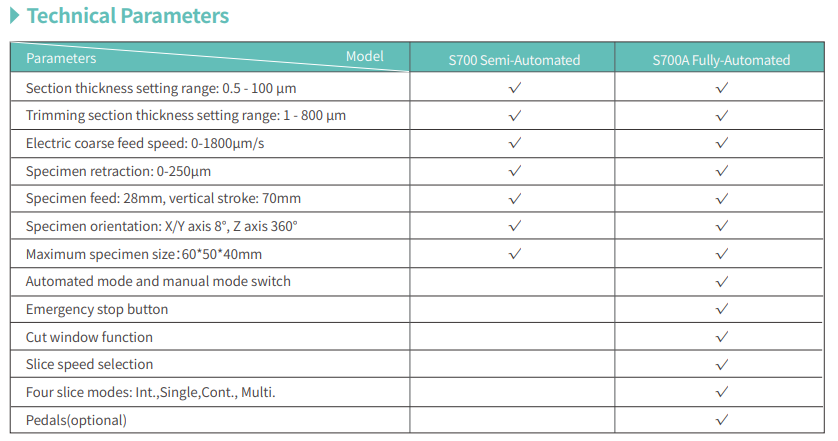

RWD Rotary Microtome (S700/S700A) : rotary microtome parts rotary microtome drawing
Rotary microtome is a device for paraffin section,widely used in medical and biological research. It is used for pathological diagnosis in clinical,and used for research at the tissue and cell level.

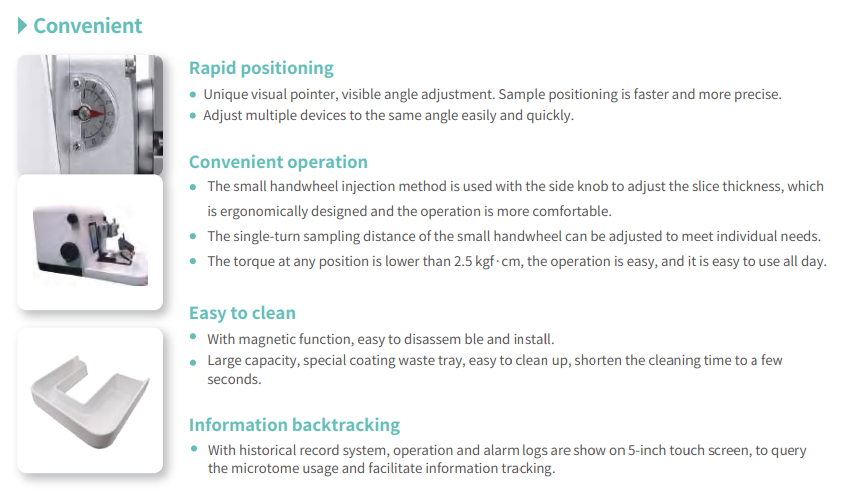

Features
Visual pointer
Designed with the visual pointer on precise positioning system, easy to adjust the sample to the target angle, reducing trimming and sample waste. » Adjust multiple devices to the same angle easily and quickly.
The side knobs
Integrated with the machine, ergonomic design, make operation more comfortable and coordinated. » The sample feeding speed can be adjusted freely between 0-1800μm/s, more choice and more efficient. » Durable military-grade devices, service life is more than 20 million times.
Automatic section
» It is stable and maintains slice consistency. » No extra skills required, easy to complete the operation. » Some specimens such as embryos and brains need to be cut for hundreds of pieces. It is hard for you, but easy for automatic section.
Easily removable waste tray
» With magnetic function, easy to disassemble and install. » Special coating materials tray, easy to clean up, shorten the cleaning time to a few seconds.

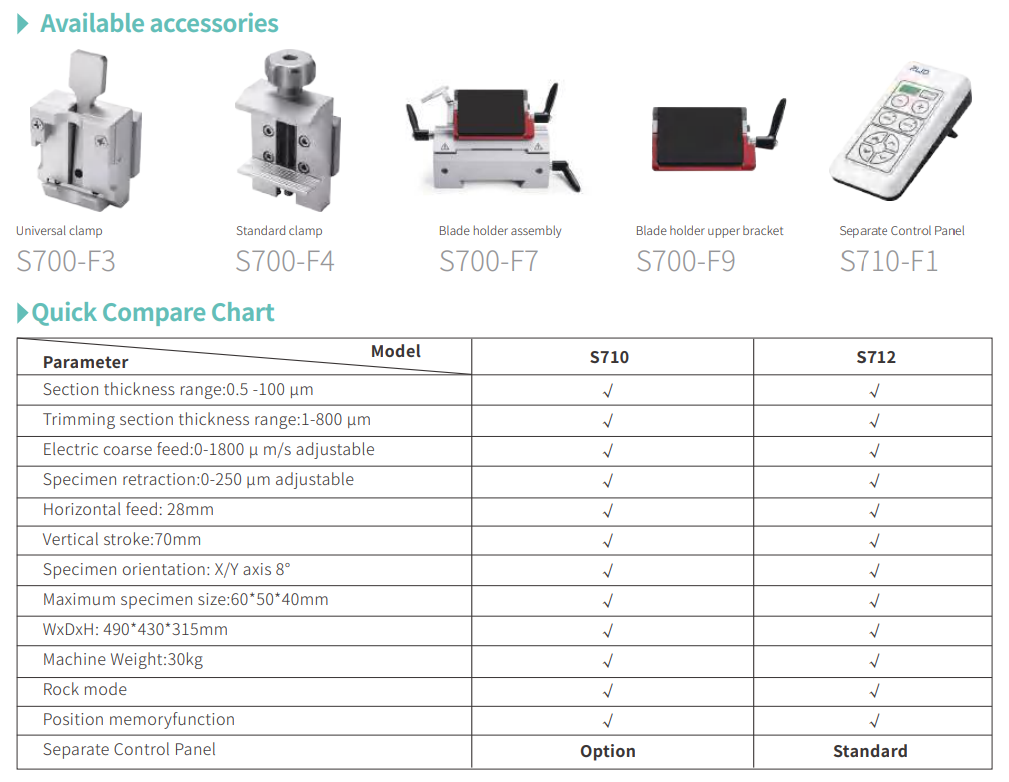

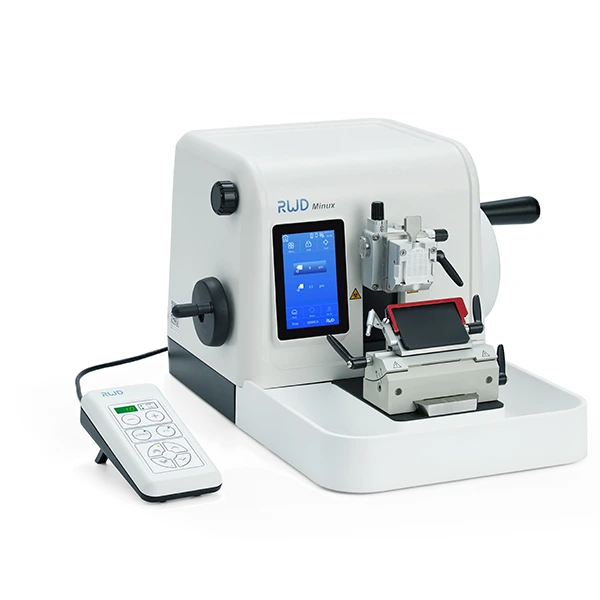

Minux ® Rotary Microtomes（ S710 / S712 )
