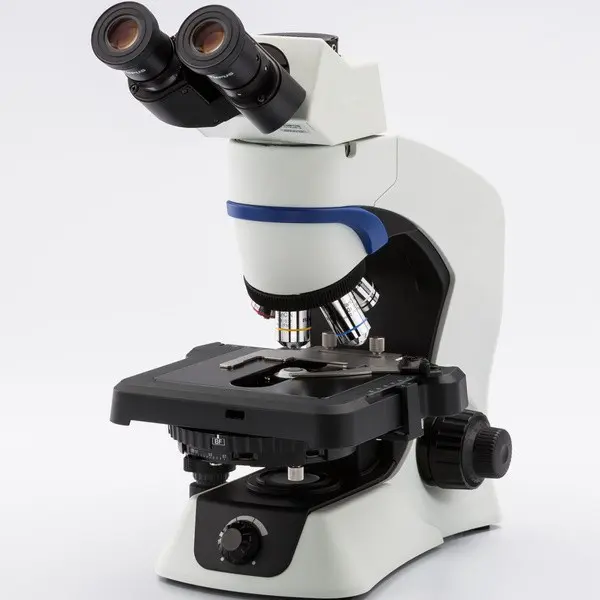

EVIDENT CX43 Set

EVIDENT CX43 Set Upright microscope stand for transmitted and reflected light observations. Integrated LED illumination, low 5-position nosepiece, cross-stage (211 x 154 mm, travel range 76 x 52 mm) with right-sided, low-lying stage drive, stage lock and holder for a standard specimen. Fixed Abbe condenser with numerical aperture 1.25, aperture diaphragm, 7-position carousel: HF(4X - 100X), 2X, DF, Ph1, Ph2, Ph3, and fluorescence shutter. Coaxial coarse and fine drive, complete focus range 15 mm, fine drive 300 µm/rotation, reading accuracy 2.5 µm. Adjustment wheel for coarse drive friction and mechanical focus stop. A mains cable (035425 UYCP) is also required. The scope of delivery includes a wide-range power supply unit (AC 100-240 V 50/60 Hz 0.4 A), an Allen key and operating instructions. The set also includes EVIDENT U-CBI30-2-2 Binocular tube Binocular tube, for WHB10X or WHB10X-H eyepieces, viewing angle 30°, eye relief 48-75 mm, field of view 20, with left-sided dioptre adjustment EVIDENT WHB10X-2 wide field eyepiece Wide field eyepiece 10x for U-CBI30 and U-CTR30 tubes, field number 20 EVIDENT WHB10XH-2 Wide field eyepiece Wide field eyepiece 10x for U-CBI30 and U-CTR30 tubes, focusable, field number 20 Note: Additional accessory components can be ordered (see below). In addition to the microscope set, we recommend at least the connection cable, immersion oil and the dust cover.The set does not include lenses. These can be selected from the accessories.
